Car Model Guide/ BMW/ 5 Series/ E61

BMW 5 Series Touring, E61

One of the most useful estates of its decade, with a split tailgate and a self-levelling rear axle that's also its most expensive habit.

Overview

The E61 is the wagon BMW 5 Series, built 2004–2010 and facelifted in 2007. 8 standard engines are documented here, each with its own issue list, inspection sequence and price band. Asking prices across the standard range run €2,950–€14,450, and 2 of the 8 carry a risk level of 4 or 5; the facelift cars sit at a premium over otherwise identical pre-facelift ones. The 525i M54 is both the cheapest way in, from €3,700, and the lowest-risk engine of the range, which makes it the obvious starting point. Prices are illustrative placeholders rather than a sourced market sample. See the methodology.

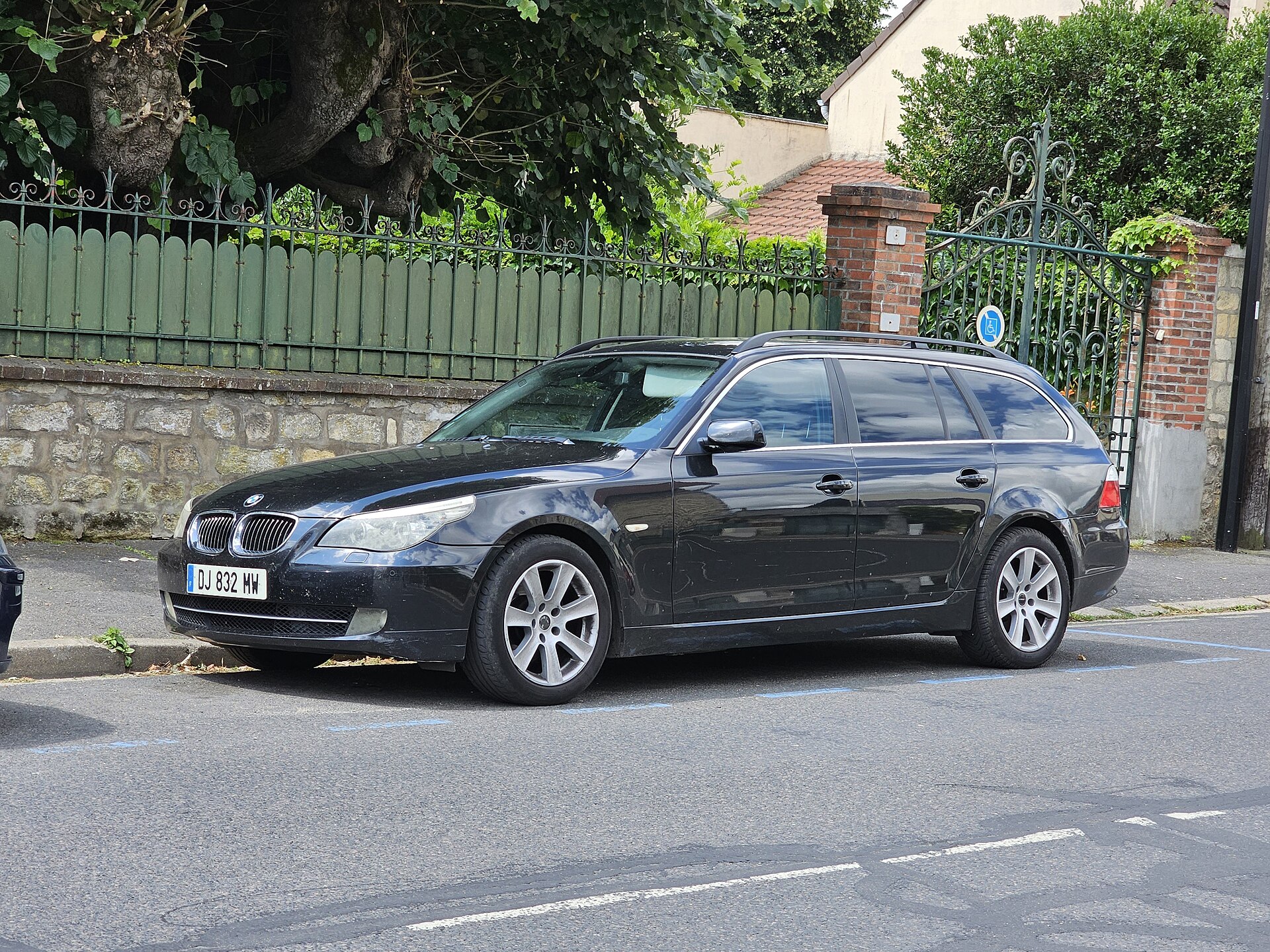

BMW 5 Series wagon (E61) · photo BMW E61 5 Series Touring Jet Black (1) by Damian B Oh · CC BY-SA 4.0 · Wikimedia Commons

Body style	wagon	Production	2004–2010
Platform siblings	E60 sedan	Facelift (LCI)	2007

What changed at the 2007 facelift

Revised lights, bumpers and iDrive; N53 replaced the N52 in most European petrol sixes; N47 replaced the M47 in the 520d. The engine changes are the ones that matter, a car built in the changeover year can carry either engine, so check the engine code on the block rather than the registration date.

Engine matrix: pre-facelift, 2004–2006

The 5 variants sold before the 2007 facelift. Power and years come from the variant records; prices are illustrative, not sourced.

FilterFuelGearboxRisk ceilingGood buy under5 of 5

Badge↕	Engine	Fuel	Years↕	Power↑	Torque↕	Risk↕	Issues	Price band↕	Good buy↕	Verdict
520d	M47	diesel	2005–2006	163 PS	340 Nm	R2	19	€3,400–€7,400	€4,250	Buy	View
525i	M54	petrol	2004–2005	192 PS	245 Nm	R2	19	€2,950–€6,550	€3,700	Buy w/ conditions	View
525d	M57	diesel	2004–2006	197 PS	400 Nm	R2	21	€4,250–€10,050	€5,400	Strong buy	View
530d	M57	diesel	2004–2006	235 PS	500 Nm	R2	21	€5,300–€13,250	€6,800	Strong buy	View
530i	N52	petrol	2005–2006	258 PS	300 Nm	R2	21	€4,450–€10,600	€5,700	Buy	View

Engine matrix: facelift / LCI, 2007–2010

The 7 variants sold from the facelift on, priced at a 9% premium over the pre-facelift car.

7 variants from the facelift on, carrying a real market premium of roughly 9% over an otherwise identical pre-facelift car. Variants appearing in both tables were sold either side of the changeover, the build month decides which one you're looking at, not the model year.

FilterFuelGearboxRisk ceilingGood buy under7 of 7

Badge↕	Engine	Fuel	Years↕	Power↑	Torque↕	Risk↕	Issues	Price band↕	Good buy↕	Verdict
520d	M47	diesel	2007–2007	163 PS	340 Nm	R2	19	€3,700–€8,100	€4,650	Buy	View
520d	N47	diesel	2007–2010	177 PS	350 Nm	R4	21	€5,200–€11,550	€6,550	Caution	View
523i	N53	petrol	2007–2010	190 PS	270 Nm	R3	22	€4,150–€9,800	€5,250	Buy w/ conditions	View
525d	M57	diesel	2007–2010	197 PS	400 Nm	R2	21	€4,600–€11,000	€5,900	Strong buy	View
530d	M57	diesel	2007–2010	235 PS	500 Nm	R2	21	€5,800–€14,450	€7,400	Strong buy	View
530i	N52	petrol	2007–2010	258 PS	300 Nm	R2	21	€4,850–€11,550	€6,200	Buy	View
535i	N54	petrol	2007–2010	306 PS	400 Nm	R4	23	€5,800–€13,850	€7,250	Caution	View

Market availability varied by country; check the engine code stamped on the block rather than the badge on the boot. · Compare every engine side by side →

Model-year availability

Which engines were on sale in which year, from the year ranges in the variant records. Availability varied by country.

Variant	04	05	06	07	08	09	10
520d M47		◐	●	◐
520d N47				◐	●	●	●
523i N53				◐	●	●	●
525i M54	●	◐
525d M57	●	●	●	●	●	●	●
530d M57	●	●	●	●	●	●	●
530i N52		◐	●	●	●	●	●
535i N54				◐	●	●	●

● full year · ◐ arrives or leaves mid-generation. Years from 2007 in the accent colour are facelift (LCI) cars. Verify the engine code, not the model year.

Rating map, price against risk

Good-buy price plotted against risk level for every standard engine, so the value corner is visible at a glance.

Every standard engine in the chassis, plotted at its good-buy price against its risk level. Cheap and low-risk is the top-left; expensive and fragile is the bottom-right. M cars are excluded, they would stretch the price axis and tell you nothing about the rest.

Buy / strong buy Buy with conditions Caution / avoidLeft is cheaper, up is safer. The top-left corner is where the value is.

Prices across the range

Where the money sits across the whole chassis. Every figure here is an illustrative placeholder, not a sourced market sample.

Every standard engine on one euro axis: the bar spans the 10th to 90th percentile of asking prices, the tick is the median and the green marker is the good-buy figure. M cars are excluded; they sit an order of magnitude above the rest.

Cheapest good buy€3,700525i M54

Median good buy€5,700across 8 engines

Dearest good buy€7,250535i N54

Full range€2,950–€14,450P10 to P90

Every standard engine · cheapest first · 525d M57 highlighted as best value

€5k€10kGood buy

525i M54€3,700 520d M47€4,250 523i N53€5,250 525d M57€5,400 530i N52€5,700 520d N47€6,550 530d M57€6,800 535i N54€7,250

at or under the good buy · good buy · median · bar spans the 10th–90th percentile

Chassis-wide issues, every engine inherits these

Faults recorded against the bodyshell and running gear rather than one engine, so every variant on this page inherits them.

Front control arm bushing wearE9x chassis€300–€700

Knocking over bad surfaces, vague or wandering steering, uneven front tyre wear, steering shimmy under braking. The front lower arm bushings are a known wear item on this chassis and go well before the ball joints.

Check: Drive over a rough road at low speed with the windows down and listen. Check the inside edges of the front tyres for feathering.

SuspensionuniversalDetectable at viewingevidence: documented80–150k km

Rear self-levelling air suspension leak (Touring)E61 body€500–€1,100

The rear of the car sitting low after standing overnight, a suspension warning, and a compressor that runs for longer than it should. The rear air springs perish and leak, and the compressor wears from working to compensate. The E61 carries this system as standard, so every one of them eventually meets it.

Check: Park it level overnight and look at the rear ride height in the morning, then listen for a compressor that runs long after start-up.

SuspensioncommonDetectable at viewingevidence: documented120–220k km

Active steering fault5 Series platform€800–€2,500

A steering warning light, a message about the active steering, and in some cases a stiffer or unpredictable rack response. Where active steering was optioned, the actuator and its control unit can fail. Cars without the option are unaffected, so establish which system the car has before pricing the risk.

Check: Check for a steering warning at start-up, turn lock to lock while stationary, and confirm from the options list whether active steering is even fitted.

SuspensionoccasionalDetectable at viewingevidence: documented120–220k km

Module and electronics failures5 Series platform€150–€1,200

Warning lights that come and go, iDrive freezing or rebooting, comfort access refusing to open the doors, and occasional non-starts. The E60 carries far more electronic modules than the E90 and they're now old. A weak battery is the most common root cause, since low voltage upsets several modules at once, though genuine module and connector failures do happen.

Check: Scan every module rather than just the engine, cycle the iDrive and the comfort access, and check whether the battery has been replaced and registered.

ElectricalcommonPartly detectableevidence: documented120–220k km

Run-flat tyres and kerbed or cracked wheelsE9x chassis€150–€900

Harsh ride, vibration at speed, slow punctures. Stiff-sidewall run-flats transmit impacts straight into the rim, and these alloys crack rather than bend.

Check: Inspect the inner rim edge of every wheel for cracks and hairline splits, not just the face for kerbing. Budget for a set of conventional tyres; most owners switch and the ride improves markedly.

SuspensioncommonDetectable at viewingevidence: documented

Corrosion at the rear subframe and arch seamsE9x chassis€300–€2,000

Bubbling at the rear arch lip, scaling on subframe mounting points and rear suspension components. Age plus road salt. This generation isn't a notorious rotter, but nothing from 2005–2013 is immune in a salted market.

Check: Put it on a lift and look at the rear subframe mounting points and the arch lips from behind. Largely a non-issue on cars from southern Europe, a real one on northern and Baltic cars.

Body & corrosionoccasionalDetectable at viewingevidence: documented

Footwell module (FRM) failureE9x chassis€150–€700

Headlights, indicators, windows, wipers and central locking stop working at once, usually right after a battery change or a jump start. The module's memory corrupts when supply voltage dips. It is the single most common electrical failure on this generation.

Check: Test every window, both mirrors, the wipers, all exterior lights and the central locking before you drive. If any cluster of these is dead, this is why.

ElectricalcommonDetectable at viewingevidence: documented

Rear shock mount wearE9x chassis€250–€500

Knock from the rear over speed bumps, a hollow thump from the boot area. The rubber mounts perish. On hard-used cars the mount can crack the surrounding turret metal, which is a far bigger job.

Check: Lift the boot floor and look at the top of the shock towers for cracking or a lifted mount. Listen for a knock over bumps.

SuspensioncommonDetectable at viewingevidence: documented100–180k km

xDrive transfer case actuator failureE9x chassis€600–€1,200

Grinding or binding at low-speed full lock, 4x4 warning lights, a shudder when manoeuvring. The actuator motor and the transfer case's internal chain wear, especially on cars run with mismatched tyre sizes.

Check: Full-lock circles in both directions in a car park, slowly, listening for binding. Check all four tyres are the same brand and wear, mismatched tyres destroy these.

DrivetrainoccasionalDetectable at viewingevidence: documented120–220k km

Tailgate glass hinge cracking (Touring)E61 body€300–€1,200

The upper tailgate glass rattling or sitting proud, water getting into the boot, and in the worst case the glass section failing to hold. The hinges for the separately opening rear glass crack with age and use. Repair kits exist, though some cars end up needing a tailgate.

Check: Open the glass section on its own, feel for movement at the hinges, and check the boot for damp and the seal for wear.

Body & corrosionoccasionalDetectable at viewingevidence: documented120–220k km

iDrive CCC head unit failureE9x chassis€300–€900

Black screen, rebooting, refusal to read the drive, non-functioning navigation. The early CCC unit's hard drive and mainboard fail with age. Later CIC units are more reliable.

Check: Turn it on and use it for a few minutes: navigation, radio, settings. Reboots during that window are the fault showing itself.

ElectricaloccasionalDetectable at viewingevidence: documented

Coolant expansion tank crackingE9x chassis€120–€250

Coolant smell after a drive, slow unexplained loss of coolant, crusty residue around the tank seams. The plastic tank goes brittle with age and splits, usually at a seam or around the level sensor.

Check: Look at the tank with the engine warm, dried coolant leaves a white or pink crust. Cheap to fix, but it tells you how the car has been maintained.

CoolingcommonDetectable at viewingevidence: documented90–200k km

Unregistered replacement batteryE9x chassis€30–€60

Random electrical faults, warning lights that come and go, a battery that dies again within a year. The car's power management must be told a new battery was fitted. Cheap replacements are routinely fitted without coding, which then overcharges or undercharges the new battery.

Check: Ask when the battery was changed and whether it was registered. A car with a new battery, no registration and a scatter of odd electrical faults usually just needs coding.

ElectricalcommonPartly detectableevidence: documented

Written once against the chassis and shown on every variant page below, so nothing here is repeated 8 times: M cars included, since the bodyshell and electronics are shared.

Buying summary

Our read on the chassis, built on the records above rather than added to them.

Every engine rule from the saloon applies. Two things are specific to this body and both cost money. The rear air suspension sags and leaks as it ages, so park it overnight and look at the ride height in the morning. Then check the tailgate: the E61's upper glass hinges crack, and the repair means a new tailgate on some cars. A 530d Touring with both addressed is one of the best cars in this database.

Cheapest and dearest in this chassis

The ends of the range by good-buy price. Useful for sanity-checking anything you're quoted.

Lowest entry price

525i M54 : from €2,950, risk 2

520d M47 : from €3,400, risk 2

523i N53 : from €4,150, risk 3

Lowest risk

525i M54 : risk 2, good buy at €3,700

520d M47 : risk 2, good buy at €4,250

525d M57 : risk 2, good buy at €5,400
