Toyota Avensis Saloon, T27

Deliberately unexciting, and built to a standard the European mid-size cars of this era mostly didn't reach.

Overview

The T27 is the sedan Toyota Avensis, built 2009–2018 and facelifted in 2015. 4 standard engines are documented here, each with its own issue list, inspection sequence and price band. Asking prices across the standard range run €2,900–€9,300, and 1 of the 4 carry a risk level of 4 or 5; the facelift cars sit at a premium over otherwise identical pre-facelift ones. The 1.6 Valvematic 1ZR-FAE is both the cheapest way in, from €3,700, and the lowest-risk engine of the range, which makes it the obvious starting point. Prices are illustrative placeholders rather than a sourced market sample. See the methodology.

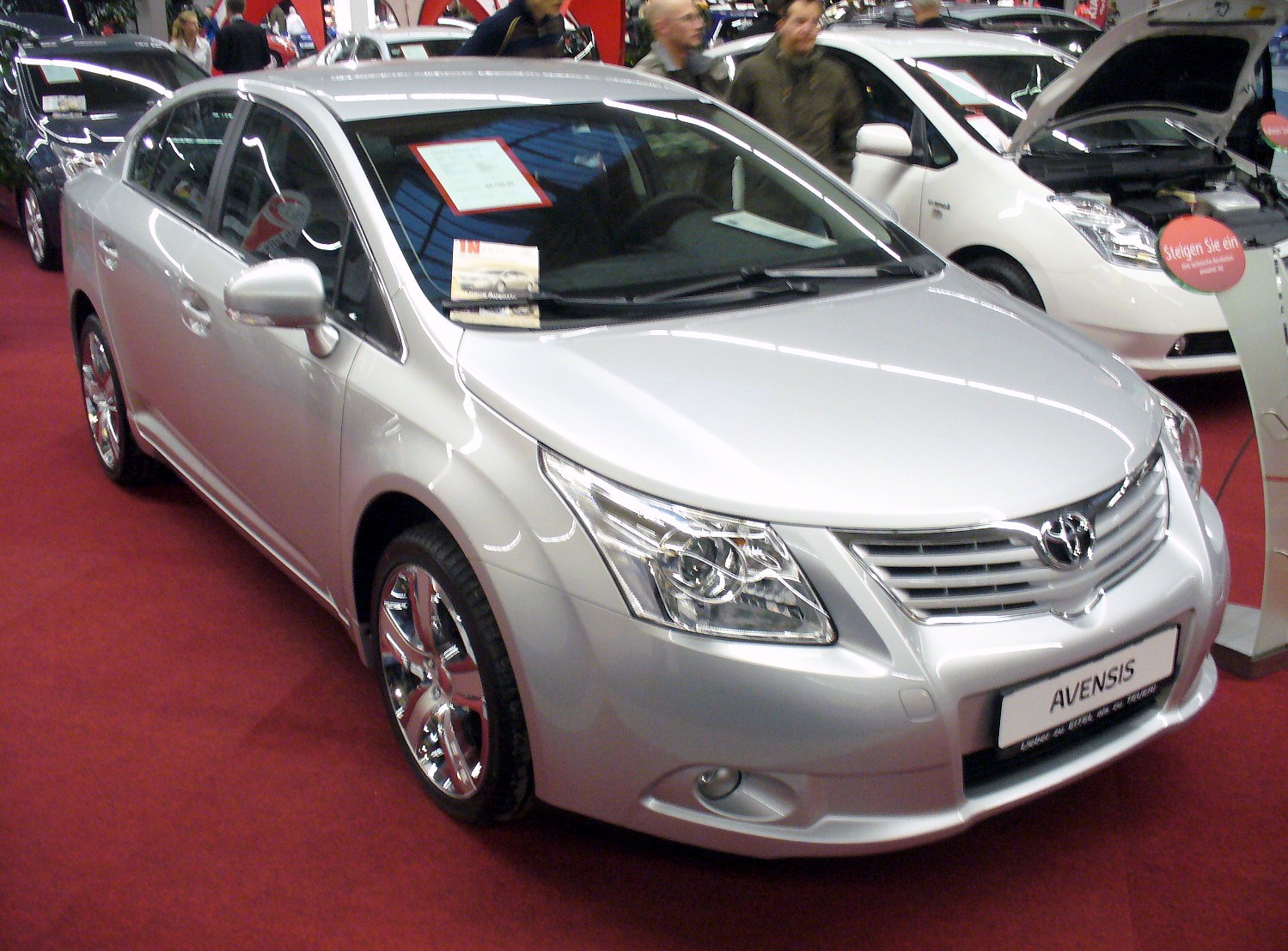

Toyota Avensis sedan (T27) · photo Toyota Avensis III Platinsilber by Thomas doerfer · CC BY-SA 3.0 · Wikimedia Commons

Body style	sedan	Production	2009–2018
Platform siblings	T27 Tourer wagon	Facelift (LCI)	2015

What changed at the 2015 facelift

New nose, lights and interior; 1.6 D-4D replaced the 2.0 D-4D in some markets; Revised suspension and sound insulation. The engine changes are the ones that matter, a car built in the changeover year can carry either engine, so check the engine code on the block rather than the registration date.

Engine matrix: pre-facelift, 2009–2014

The 4 variants sold before the 2015 facelift. Power and years come from the variant records; prices are illustrative, not sourced.

FilterFuelGearboxRisk ceilingGood buy under4 of 4

Badge↕	Engine	Fuel	Years↕	Power↑	Torque↕	Risk↕	Issues	Price band↕	Good buy↕	Verdict
2.0 D-4D	1AD-FTV	diesel	2009–2014	126 PS	310 Nm	R2	12	€3,250–€8,100	€4,150	Buy	View
1.6 Valvematic	1ZR-FAE	petrol	2009–2014	132 PS	160 Nm	R1	10	€2,900–€7,200	€3,700	Buy	View
2.2 D-4D	2AD-FTV	diesel	2009–2014	150 PS	340 Nm	R4	13	€3,050–€7,650	€3,950	Caution	View
2.0 Valvematic	3ZR-FAE	petrol	2009–2014	152 PS	196 Nm	R1	11	€3,400–€8,550	€4,400	Strong buy	View

Engine matrix: facelift / LCI, 2015–2018

The 4 variants sold from the facelift on, priced at a 9% premium over the pre-facelift car.

4 variants from the facelift on, carrying a real market premium of roughly 9% over an otherwise identical pre-facelift car. Variants appearing in both tables were sold either side of the changeover, the build month decides which one you're looking at, not the model year.

FilterFuelGearboxRisk ceilingGood buy under4 of 4

Badge↕	Engine	Fuel	Years↕	Power↑	Torque↕	Risk↕	Issues	Price band↕	Good buy↕	Verdict
2.0 D-4D	1AD-FTV	diesel	2015–2015	126 PS	310 Nm	R2	12	€3,550–€8,850	€4,550	Buy	View
1.6 Valvematic	1ZR-FAE	petrol	2015–2018	132 PS	160 Nm	R1	10	€3,150–€7,850	€4,050	Buy	View
2.2 D-4D	2AD-FTV	diesel	2015–2015	150 PS	340 Nm	R4	13	€3,350–€8,350	€4,350	Caution	View
2.0 Valvematic	3ZR-FAE	petrol	2015–2018	152 PS	196 Nm	R1	11	€3,750–€9,300	€4,850	Strong buy	View

Market availability varied by country; check the engine code stamped on the block rather than the badge on the boot. · Compare every engine side by side →

Model-year availability

Which engines were on sale in which year, from the year ranges in the variant records. Availability varied by country.

Variant	09	10	11	12	13	14	15	16	17	18
2.0 D-4D 1AD-FTV	●	●	●	●	●	●	◐
1.6 Valvematic 1ZR-FAE	●	●	●	●	●	●	●	●	●	●
2.2 D-4D 2AD-FTV	●	●	●	●	●	●	◐
2.0 Valvematic 3ZR-FAE	●	●	●	●	●	●	●	●	●	●

● full year · ◐ arrives or leaves mid-generation. Years from 2015 in the accent colour are facelift (LCI) cars. Verify the engine code, not the model year.

Rating map, price against risk

Good-buy price plotted against risk level for every standard engine, so the value corner is visible at a glance.

Every standard engine in the chassis, plotted at its good-buy price against its risk level. Cheap and low-risk is the top-left; expensive and fragile is the bottom-right. M cars are excluded, they would stretch the price axis and tell you nothing about the rest.

Buy / strong buy Buy with conditions Caution / avoidLeft is cheaper, up is safer. The top-left corner is where the value is.

Prices across the range

Where the money sits across the whole chassis. Every figure here is an illustrative placeholder, not a sourced market sample.

Every standard engine on one euro axis: the bar spans the 10th to 90th percentile of asking prices, the tick is the median and the green marker is the good-buy figure. GR cars are excluded; they sit an order of magnitude above the rest.

Cheapest good buy€3,7001.6 Valvematic 1ZR-FAE

Median good buy€4,150across 4 engines

Dearest good buy€4,4002.0 Valvematic 3ZR-FAE

Full range€2,900–€9,300P10 to P90

Every standard engine · cheapest first · 2.0 Valvematic 3ZR-FAE highlighted as best value

€4k€6k€8kGood buy

1.6 Valvematic 1ZR-FAE€3,700 2.2 D-4D 2AD-FTV€3,950 2.0 D-4D 1AD-FTV€4,150 2.0 Valvematic 3ZR-FAE€4,400

at or under the good buy · good buy · median · bar spans the 10th–90th percentile

Chassis-wide issues, every engine inherits these

Faults recorded against the bodyshell and running gear rather than one engine, so every variant on this page inherits them.

Front control arm bushing wearE9x chassis€300–€700

Knocking over bad surfaces, vague or wandering steering, uneven front tyre wear, steering shimmy under braking. The front lower arm bushings are a known wear item on this chassis and go well before the ball joints.

Check: Drive over a rough road at low speed with the windows down and listen. Check the inside edges of the front tyres for feathering.

SuspensionuniversalDetectable at viewingevidence: documented80–150k km

Run-flat tyres and kerbed or cracked wheelsE9x chassis€150–€900

Harsh ride, vibration at speed, slow punctures. Stiff-sidewall run-flats transmit impacts straight into the rim, and these alloys crack rather than bend.

Check: Inspect the inner rim edge of every wheel for cracks and hairline splits, not just the face for kerbing. Budget for a set of conventional tyres; most owners switch and the ride improves markedly.

SuspensioncommonDetectable at viewingevidence: documented

Corrosion at the rear subframe and arch seamsE9x chassis€300–€2,000

Bubbling at the rear arch lip, scaling on subframe mounting points and rear suspension components. Age plus road salt. This generation isn't a notorious rotter, but nothing from 2005–2013 is immune in a salted market.

Check: Put it on a lift and look at the rear subframe mounting points and the arch lips from behind. Largely a non-issue on cars from southern Europe, a real one on northern and Baltic cars.

Body & corrosionoccasionalDetectable at viewingevidence: documented

Footwell module (FRM) failureE9x chassis€150–€700

Headlights, indicators, windows, wipers and central locking stop working at once, usually right after a battery change or a jump start. The module's memory corrupts when supply voltage dips. It is the single most common electrical failure on this generation.

Check: Test every window, both mirrors, the wipers, all exterior lights and the central locking before you drive. If any cluster of these is dead, this is why.

ElectricalcommonDetectable at viewingevidence: documented

Rear shock mount wearE9x chassis€250–€500

Knock from the rear over speed bumps, a hollow thump from the boot area. The rubber mounts perish. On hard-used cars the mount can crack the surrounding turret metal, which is a far bigger job.

Check: Lift the boot floor and look at the top of the shock towers for cracking or a lifted mount. Listen for a knock over bumps.

SuspensioncommonDetectable at viewingevidence: documented100–180k km

xDrive transfer case actuator failureE9x chassis€600–€1,200

Grinding or binding at low-speed full lock, 4x4 warning lights, a shudder when manoeuvring. The actuator motor and the transfer case's internal chain wear, especially on cars run with mismatched tyre sizes.

Check: Full-lock circles in both directions in a car park, slowly, listening for binding. Check all four tyres are the same brand and wear, mismatched tyres destroy these.

DrivetrainoccasionalDetectable at viewingevidence: documented120–220k km

iDrive CCC head unit failureE9x chassis€300–€900

Black screen, rebooting, refusal to read the drive, non-functioning navigation. The early CCC unit's hard drive and mainboard fail with age. Later CIC units are more reliable.

Check: Turn it on and use it for a few minutes: navigation, radio, settings. Reboots during that window are the fault showing itself.

ElectricaloccasionalDetectable at viewingevidence: documented

Coolant expansion tank crackingE9x chassis€120–€250

Coolant smell after a drive, slow unexplained loss of coolant, crusty residue around the tank seams. The plastic tank goes brittle with age and splits, usually at a seam or around the level sensor.

Check: Look at the tank with the engine warm, dried coolant leaves a white or pink crust. Cheap to fix, but it tells you how the car has been maintained.

CoolingcommonDetectable at viewingevidence: documented90–200k km

Very little recorded against the bodyAvensis platform€150–€400

Nothing widespread. Ordinary wear on the suspension and interior of a car that often worked as a fleet vehicle. This generation has no endemic body or electrical fault of the kind that defines its European rivals. What turns up is ordinary age and use, which is why the engine choice matters more here than the chassis does.

Check: Check the rear suspension and the boot floor on a ramp for signs of a hard-working life, and look at the interior wear against the stated mileage.

InterioruncommonDetectable at viewingevidence: documented150–300k km

Unregistered replacement batteryE9x chassis€30–€60

Random electrical faults, warning lights that come and go, a battery that dies again within a year. The car's power management must be told a new battery was fitted. Cheap replacements are routinely fitted without coding, which then overcharges or undercharges the new battery.

Check: Ask when the battery was changed and whether it was registered. A car with a new battery, no registration and a scatter of odd electrical faults usually just needs coding.

ElectricalcommonPartly detectableevidence: documented

Written once against the chassis and shown on every variant page below, so nothing here is repeated 4 times: GR cars included, since the bodyshell and electronics are shared.

Buying summary

Our read on the chassis, built on the records above rather than added to them.

Buy the petrol. The 1.8 and 2.0 Valvematic engines are chain-driven, undramatic and close to fault-free, which is the whole reason to choose this car. The diesel needs care, because the 2.2 D-4D can warp its cylinder head and Toyota extended warranties in several markets to cover exactly that. On any diesel, ask about journey type, since the particulate filter punishes short trips. A petrol Avensis with a full history is one of the lowest-risk cars in this database.

Cheapest and dearest in this chassis

The ends of the range by good-buy price. Useful for sanity-checking anything you're quoted.

Lowest entry price

1.6 Valvematic 1ZR-FAE : from €2,900, risk 1

2.2 D-4D 2AD-FTV : from €3,050, risk 4

2.0 D-4D 1AD-FTV : from €3,250, risk 2

Lowest risk

1.6 Valvematic 1ZR-FAE : risk 1, good buy at €3,700

2.0 Valvematic 3ZR-FAE : risk 1, good buy at €4,400

2.0 D-4D 1AD-FTV : risk 2, good buy at €4,150
